OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

Brand Name : BHY

Model Number : SFM3036H

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Suzhou, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Name : OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

Drive Mode : Hydraulic

Working Range : 30 to 36inches

Gross weight : 159kg

Application : Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory

Feed : 0.08mm/r

Rotation speed : 0 - 2mm/min

Hydraulic demand : 65L/min

Package : Aluminum alloy, metal packing case or wooden box

Material : High-strength Aeronautical Aluminum

Surface : Anodization

Bevel Type : V,Y,J,compound Shaped

Mounting Method : Split OD Mounted

Contact Now

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline

Pipe Cutting And Beveling Machine Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Pipe Cutting And Beveling Machine Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

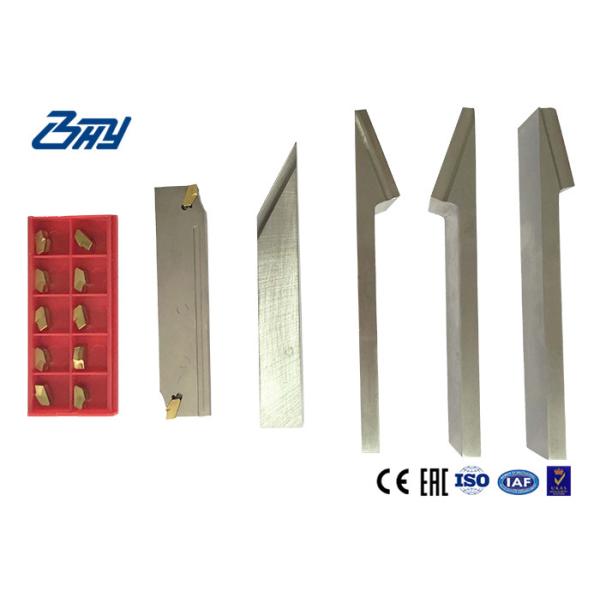

Pipe Cutting And Beveling Machine Tools

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire


Pipe Cutting And Beveling Machine Product Features

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.

Models Dimension
OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model A (mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

Pipe Cutting And Beveling Machine Manufacture

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaireOD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaireOD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

Pipe Cutting And Beveling Machine Working on site

■ Project: gas pipeline

■ Pipe material: X65

■ Pripe O.D. : 1016mm

■ Pipe thickness: 19mm

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

Pipe Cutting And Beveling Machine Exhibition

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire

OD mounted Hydraulic Pipe Cutting And Beveling Machine Cold Cutting for Oil & Gas pipeline repaire
