Brand Name : BHY
Model Number : SFM0206,SFM0612,SFM1218,SFM1824,SFM2430,SFM3036E,SFM3642,SFM4248
Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Place of Origin : Suzhou, China
MOQ : 1 set
Price : Negotiate
Payment Terms : L/C, T/T
Supply Ability : 1000 sets/year
Delivery Time : 15-60 work days
Packaging Details : Aluminum case, wooden case or metal packing case
Model : SFM0206,SFM0612,SFM1218,SFM1824,SFM2430,SFM3036E,SFM3642,SFM4248, Pipe cutting and beveling machine
Processing Range : 2"-48"(OD:60.3-1219.2mm)
Drive Mode : Electric,Pneumatic,Hydraulic
Wall thickness : ≤100mm
Function : Cutting and Beveling, Cold cutting, Portable
Machinable material : Carbon steel, alloy steel, stainless steel and other metals
Feed : 0.08mm/r
Rotation speed : 0 - 2mm/min
Motor brand : Germany Metabo
Ring component material : High strength aviation aluminum
Power : 2.4KW, 2.6KW above 36 inches
Package : Aluminum alloy, wooden box
Structure : Split frame structure
2 - 6inch, 6 - 12inch, 12 - 18inch, 18 - 24inch, 24 - 30inch, 30 - 36inch, 36 - 42inch, 42 - 48inch
Pipe Cutting and Beveling machine, cold cutting,2 - 48inches pipe cutting, 2 - 48inches pipe beveling
Pipe Cold Cutting and Beveling Machinel Tool Slides:
■ Thick-wall tool slide (conventional):
It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide:
It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.
Pipe Cold Cutting and Beveling Models Dimension:

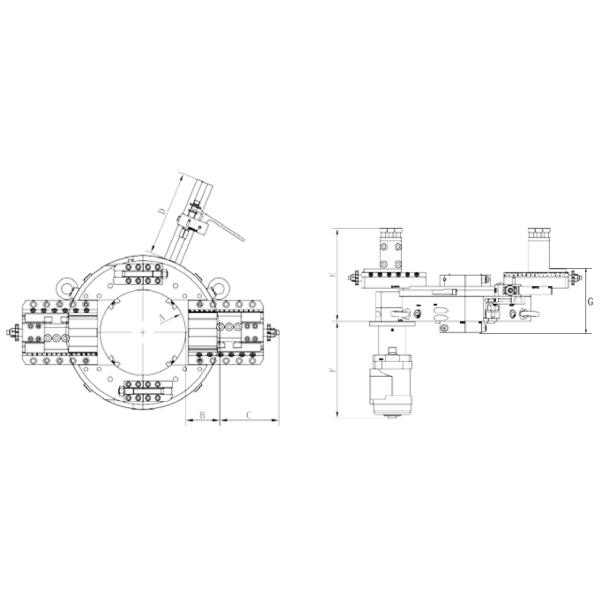

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors | |||||||
Model | A(mm) | B(mm) | C(mm) | D (mm) | E (mm) | F (mm) | G (mm) |
SFM0206 | 176 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0408 | 228 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0612 | 332 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0814 | 364 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1016 | 416 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1218 | 468 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1420 | 518 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1824 | 622 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2026 | 674 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2430 | 776 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2632 | 826 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3036 | 928 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3238 | 1006 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3642 | 1082 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM4248 | 1236 | 102 | 98 | 176 | 235 | 253 | 174 |
![]() |
